Description
Description

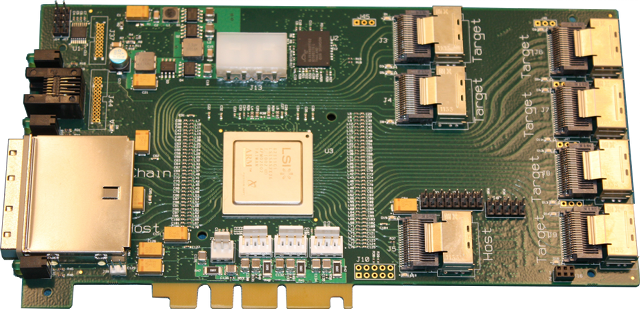

The A33606-PCI-60-6A comes pre-configured with a sanitization algorithm that will sanitize up to 16 Self-Encrypting Drives (SED) that support the Cryptographic Erase Functions “Key Erase” (SBC-3, Sections 5.24/2/4) and “Block Erase” (SBC-3, Section 5.24.2.3).
Specifications
| SAS Compliances | SAS-2.0 |
| SAS Protocols | SSP,STP and SMP |
| SAS Ports Configuration | Sixteen x4 Phy Wide |
| Host Bus Type | n/a | |
| Compliance | ANSI T10 SAS specification 2.1-r4 | |
| Drives | Self-Encrypting Drive (SED) | |
| Modes | Standalone fabric switch, Storage Enclosures | |
| Supply Voltage | 12V* +/- 10% | |
| Supply Power | 18 Watts | |
| SAS Bus | Thirty-six 6Gb/s SAS/SATA ports | |
| SAS Bandwidths |
1.5Gb/s (SAS/SATA-I) Single lane – 150 MB/s 3.0Gb/s (SAS/SATA-II) Single lane – 300 MB/s 6.0Gb/s (SAS-2/SATA-III) Single lane – 600 MB/s |
|
| Connectors | External | Internal |
| A33603-PCI-01 | 8 lanes routed through two SFF-8088 mini-SAS connectors. | 28 lanes routed through two SFF-8087 mini-SAS connectors. |
| Form Factor | PCIe full-height card (supports placing in PCI-X or PCI slots too) | |
| Protocols | SAS-2, SES-2, SAS, SATAI, SATA II | |
| Device Support | Effectively unlimited (limited by HBA controller) | |
| Cryptographic Erase Functions |
Key Erase” (SBC-3, Sections 5.24/2/4 Block Erase” (SBC-3, Section 5.24.2.3 |
|
| Agency Approval | RoHS Compliant (lead-free), FCC Class A, Safety EN60950-1 | |
| Environments | Operating | Storage |
| Temperature | 0° to 55° C | -40° to +85° C |
| Relative Humidity | 5 to 90% non-condensing | 5 to 90% non-condensing |
