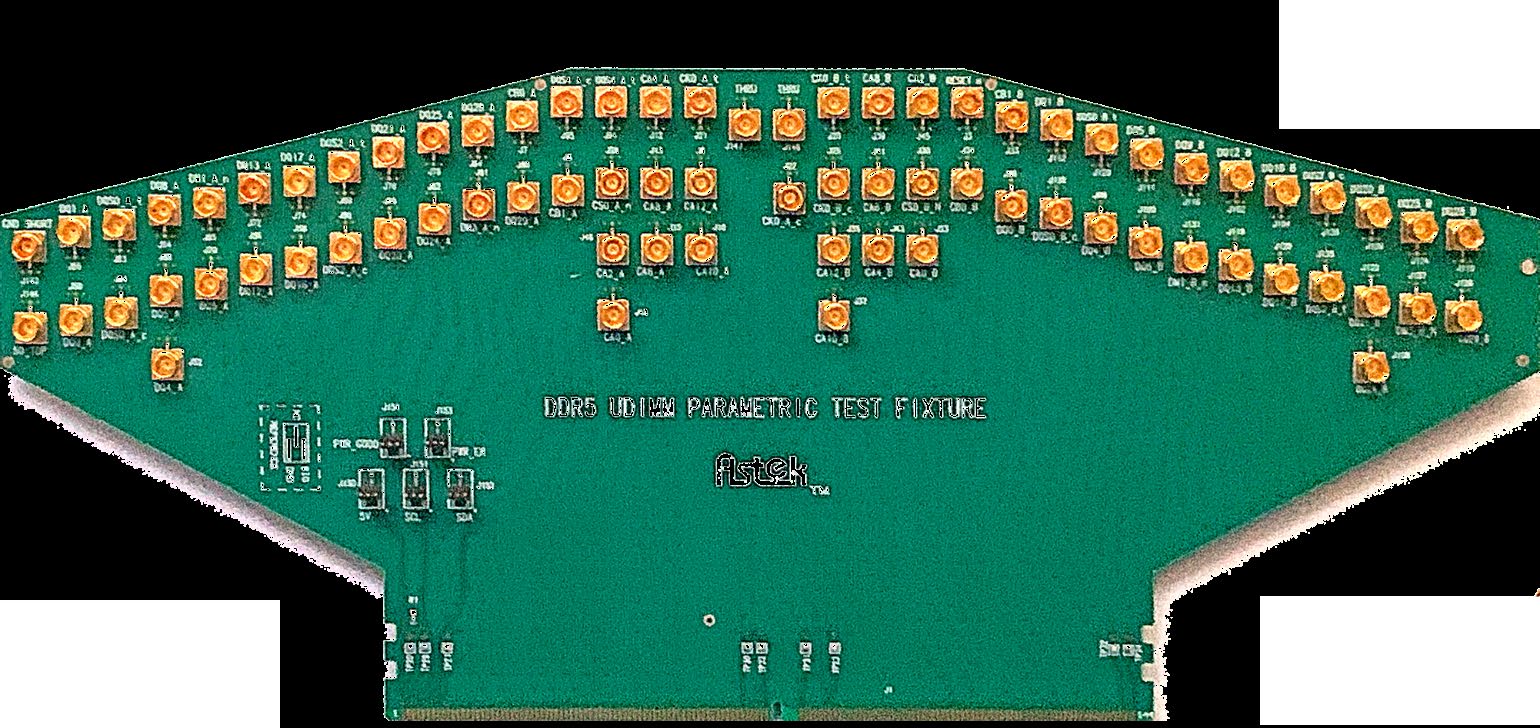

DDR5 UDIMM Parametric Card

Description

The DDR5 UDIMM Parametric Card enables designers to access all signals from a DDR5 UDIMM slot by plugging the card directly into the UDIMM slot on a host. The test fixture is constructed from high-speed, low-loss MEGTRON 6 board material.

Technical Specifications

• UDIMM signal count: 145
• All high-speed signals brought out to SMP connectors, with traces length-matched to within 1 mil
• Low-speed signals brought out to 50-mil headers
• VIN Bulk and VIN Management brought out to 50-mil headers
• Calibration structures: 2X THRU, 1X SHORT, 1X OPEN, 1X 50Ω LOAD
• Approximate size: 262.9 mm × 114.3 mm

Documentation

• Product Brief (PDF, 619 KB)
