Description

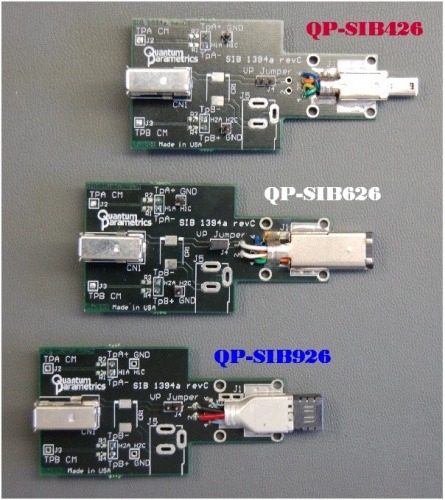

QP-SIB426, 626, 926 enables easy connection of oscilloscope probes to 4, 6 or 9-pin 1394 devices for debug and signal integrity testing. These fixtures can be used as a simple pass through with test points connected to the differential signals for easy connection of oscilloscope probes. The fixtures also provide common mode and cable power test points.
