DDR5 CTC3 Test Fixture

Description

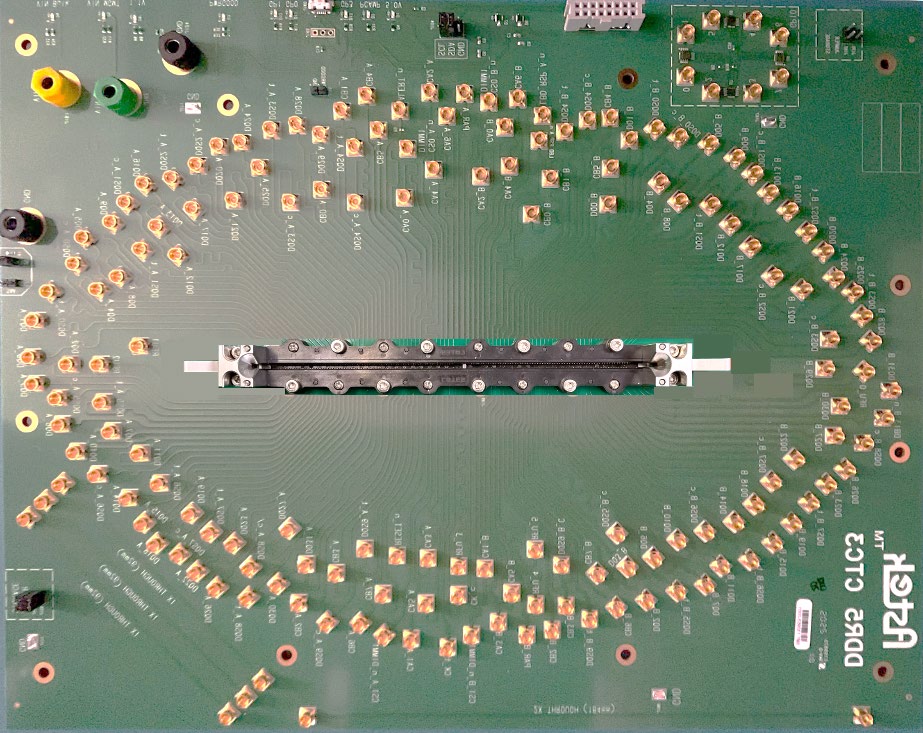

CTC3 Test Fixtures enable engineers to access all DDR5 MRDIMM signals via SMP interface to a 287-pin MRDIMM socket. The CTC3’s design emphasizes signal integrity, realized through board fabrication using high-speed, low-loss materials and high-performance SMP connectors. A USB interface provides access to I2C device control. CTC3 fixtures are available in three configurations: with a high-performance/high-reliability DDR5 DIMM test socket, with a standard DDR5 MRDIMM socket, or without a DIMM socket attached.

Features

• All high-speed signals brought out to high-performance SMP connectors
• All signals matched to within 1 ps
• High-performance/high-reliability MRDIMM test connectors (>1000s of insertions)
• Supports MRDIMM testing and test card testing (RVC2 test card, etc.)
• I2C control via USB
• VIN_BULK and VIN_MGMT external power supply inputs
• 1x and 2x reference traces for BERT and scope calibration
• Eight general-purpose I/Os (RESET, CS[1:0], …)
