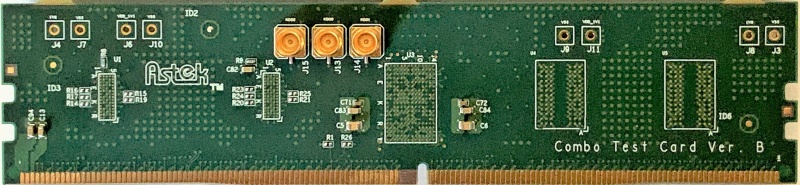

DDR5 X8 Combo Test Card

Description

Versatile DIMM test card with focus on receiver equalization and loopback BER testing. Including replica channels for calibration of stressed eyes. Data Buffer and DRAM can be configured by either RCD, signals from CTC2 or mother board. Compatible with Astek’s A9-CTC2, Channel Test Card.

Features
• RCD interfaced to DRAM and Data Buffer
• Stand-alone
• Data Buffer
• Memory

Documentation

• Product Brief (PDF, 381 KB)
• User Manual (PDF, 987 KB)
• Application Note (PDF, 597 KB)
