DDR5 CTC2 Test Fixture

Description

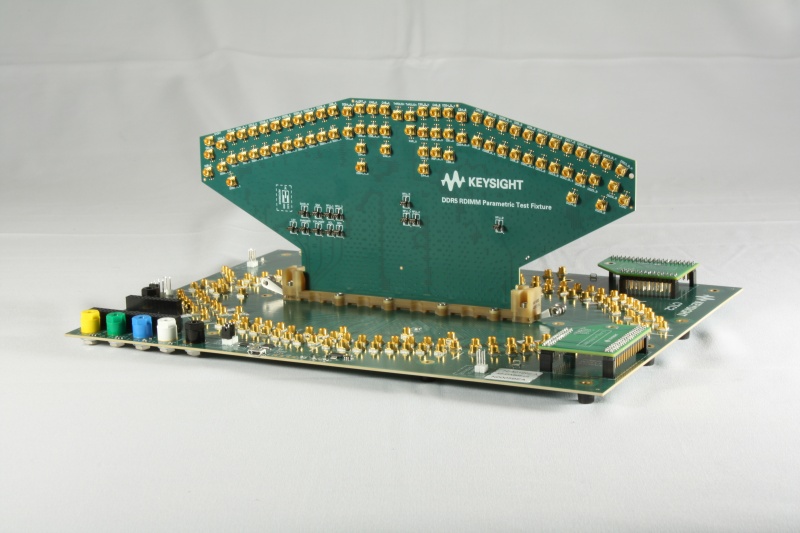

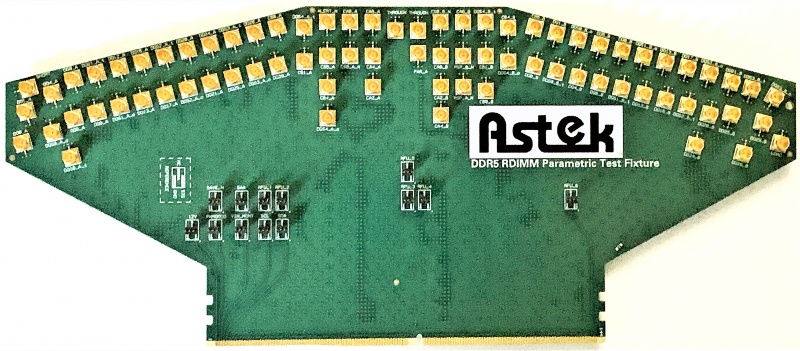

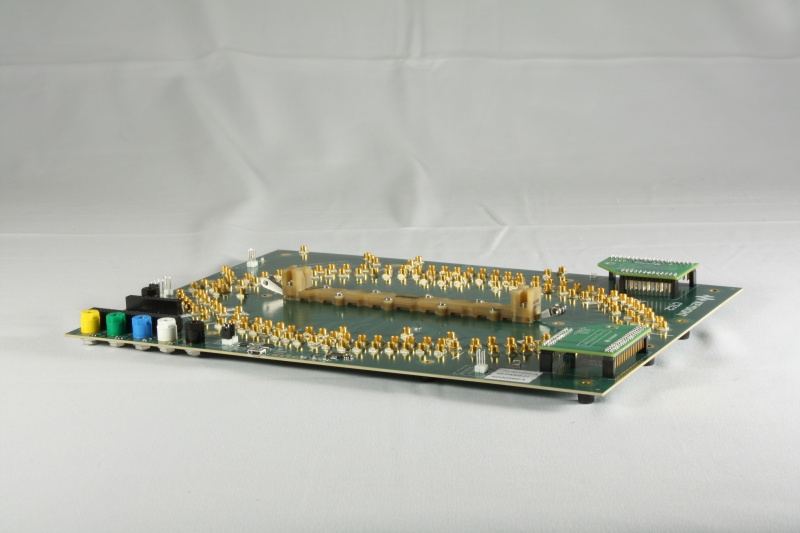

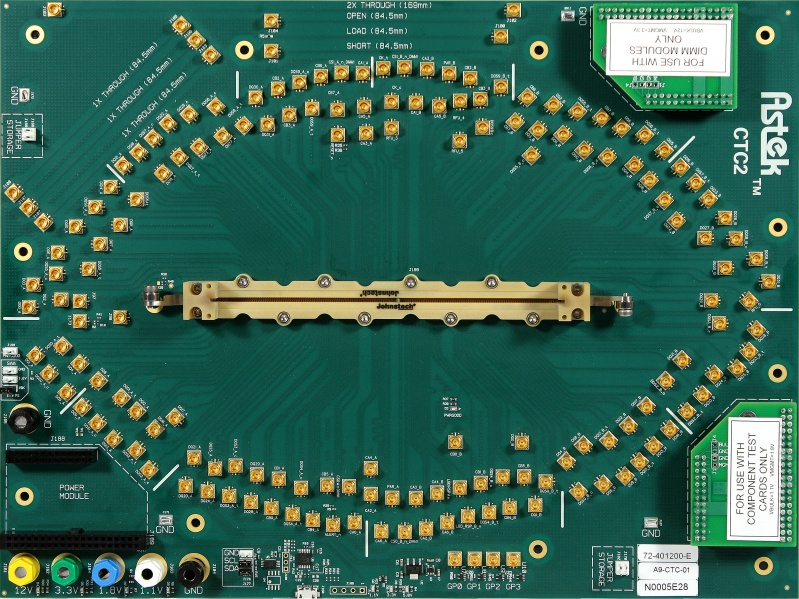

The A9-CTC2 Test Fixture enables designers to access all signals from a DDR5 DIMM by plugging a DIMM directly into the test fixture. The test fixture is constructed from high speed, low loss MEGTRON 6 material. The test fixture also allows direct control of the I2C lines by connecting to a USB terminal. The test fixture can be assembled with a high performance DDR5 DIMM socket, a standard DDR5 DIMM socket or the board can be assembled without any DDR5 DIMM socket attached.

Features
• All high-speed signals brought out to SMP connectors
• All signals matched to within 1 ps
• High performance DIMM connectors (1000s of insertions)
• Supports DIMM testing AND test card testing (RCD test card, DB test card, etc)
• Power adapter architecture provides “expansion” capability for advanced power testing
• USB connection to I2C (J3C) signals (I2C adapter can be removed via jumpers)
• Banana jacks for power input

o 12V and 3.3V for DIMM mode
o 1.1V and 1.8V for Test Card mode

• Reference traces for calibration of BERT and scope
• De-embed files are available
