Description
The A33606-PCI-60-6A comes pre-configured with a sanitization algorithm that will sanitize up to 16 Self-Encrypting Drives (SED) that support the Cryptographic Erase Functions “Key Erase” (SBC-3, Sections 5.24/2/4) and “Block Erase” (SBC-3, Section 5.24.2.3).
Specifications
| SAS Compliances |
SAS-2.0 |
| SAS Protocols |
SSP,STP and SMP |
| SAS Ports Configuration |
Sixteen x4 Phy Wide |
| Host Bus Type |
n/a |
| Compliance |
ANSI T10 SAS specification 2.1-r4 |
| Drives |
Self-Encrypting Drive (SED) |
| Modes |
Standalone fabric switch, Storage Enclosures |
| Supply Voltage |
12V* +/- 10% |
| Supply Power |
18 Watts |
| SAS Bus |
Thirty-six 6Gb/s SAS/SATA ports |
| SAS Bandwidths |
1.5Gb/s (SAS/SATA-I)
Single lane - 150 MB/s
Wide Port (4 lanes) - 600 MB/s
Wide Port (8 lanes) - 1200 MB/s
3.0Gb/s (SAS/SATA-II)
Single lane - 300 MB/s
Wide Port (4 lanes) - 1200 MB/s
Wide Port (8 lanes) - 2400 MB/s
6.0Gb/s (SAS-2/SATA-III)
Single lane - 600 MB/s
Wide Port (4 lanes) - 2400 MB/s
Wide Port (8 lanes) - 4800 MB/s
|

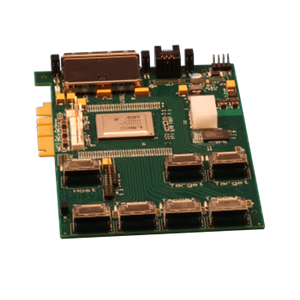

| Connectors |
External |
Internal |
| A33603-PCI-01 |
8 lanes routed through two SFF-8088 mini-SAS connectors. |
28 lanes routed through two SFF-8087 mini-SAS connectors. |
| Form Factor |
PCIe full-height card (supports placing in PCI-X or PCI slots too) |
| Protocols |
SAS-2, SES-2, SAS, SATAI, SATA II |
| Device Support |
Effectively unlimited (limited by HBA controller) |
| Cryptographic Erase Functions |
Key Erase” (SBC-3, Sections 5.24/2/4
Block Erase” (SBC-3, Section 5.24.2.3
|
| Agency Approval |
RoHS Compliant (lead-free), FCC Class A, Safety EN60950-1 |
| Environments |
Operating |
Storage |
| Temperature |
0° to 55° C |
-40° to +85° C |
| Relative Humidity |
5 to 90% non-condensing |
5 to 90% non-condensing |
